Completed Projects
The following is a brief but incomplete record of some of our completed achievements:
Latest Project: Matola 275/66kV Substation - Mocambique. Read about it here.

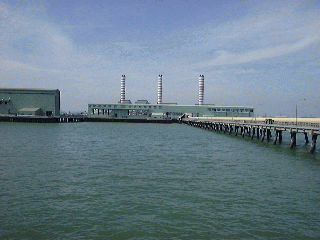

Sultan Sallahudin Abdul Aziz Power Station, Kapar - Malaysia
| Sub-contracted to turbine contractor, Black and Veatch International, to supplement the electrical commissioning team and to provide expertise and commissioning services for protective relaying systems associated with a 2 x 500MW coal fired power station project. |
|
Springvale 33kV Sub-station - Ethekwini Electricity
Installation of
3 x 33kV outdoor circuit breakers.
Design and manufacture of associated
protection and
control panels.
Integration Engineering with primary plant.
Installation, cabling and commissioning of entire
installation.
Inkosi Albert Luthuli Central Hospital - Durban
Calculation of
protection settings for the 11kV internal
reticulation system comprising a total
of 41 circuit
breakers situated in 7 substations.
Routing testing
of all protection relays and protection
systems.
System and
protection audit.
Qatar Petroleum Company - EPIC of Halul new generation project - State of Qatar
33/11kV Transformer Protection
Schemes
Redesign of scheme
Specification and Procurement of relays, current transformers
and other
components
Retro-fitting of schemes.
Commissioning of schemes.
QChem - New polyethylene manufacturing plant - State of Qatar
Investigation
into mal-operation of protection systems on 7 off
standby diesel generator sets.
Quarry 132kV
Substation - Ethekwini Electricity
8 Bay outdoor 132kV switching station.
Design of protection and control systems based on 10BaseF based
MMS/UCA2.0
substation LAN for protection, control, interlocking
and SCADA functionality.
Commissioning of entire Installation
Download
Press Report Here
Umgeni / Pineside / Blair Atholl 132/11kV Substations - Ethekwini Electricity

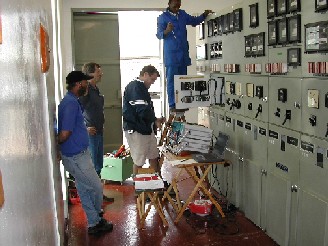

Petronet - Routine Testing of 21 Pump Stations
| Sub-contacted to
main contractor - Niewalt Consulting Engineers Calculation of Fault Levels and Protection Settings at 21 liquid fuel pump-stations. Complete maintenance testing of protection schemes at these pump stations. Implementation of settings. |
|
Alan Dalton /
Pier 2 Substation automation project - Port of Durban
Retrofit design, specification of
components, execution of live
changeover of protection and control systems for 2 x 5 panel 33kV
switchboards. Production of design drawings, cable schedules etc.
This utilised fibre optic ethernet LAN (10BaseF) based MMS/UCA2.0
protocol for remote SCADA monitoring and switching operations.
20MVA Mobile Substation - ABB South Africa
| Complete commissioning of
132/66 / 22/11kV mobile substation for ABB South Africa comprising 10MVA multi-ratio transformer, 1 x MV SF6 CB / Isolator unit, 1 x HV SF6 CB / Isolator Unit protection and control equipment, tap change control scheme. Modification of various control and |
|

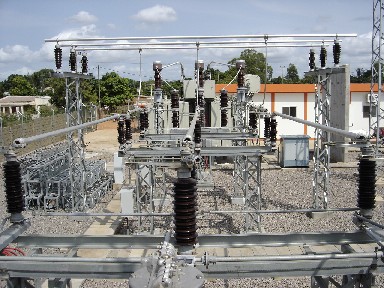

Zimpeto
66/11kV Substation - Mocambique - Isolux / Multicor
 |
Complete
commissioning of substation equipment comprising: 110V 105Ah Battery and charger 48V 105Ah Battery and charger 10 Panel 11kV Switchboard (Merlin Gerin - Sepam Relays - PM500 Meters) 30MVA Transformer with OLTC (TapCon 230 controller) 66/11kV Transformer Protection Scheme 66kV Circuit Breaker 66kV Motorised Isolators and Motorised Earthing Switches |

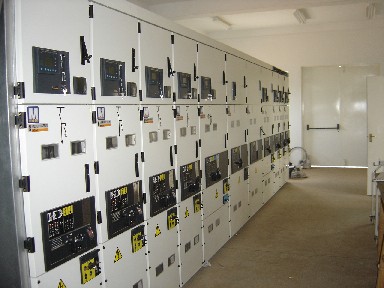

Polana
66/11kV Substation - Mocambique - Isolux / Multicor
| Complete
commissioning of substation equipment comprising: 110V 105Ah Battery and charger 48V 105Ah Battery and charger 10 Panel 11kV Switchboard (Merlin Gerin - Sepam Relays - PM500 Meters) 30MVA Transformer with OLTC (TapCon 230 controller) 66/11kV Transformer Protection Scheme 66kV Circuit Breaker 66kV Motorised Isolators and Motorised Earthing Switches |
 |
PS15 11kV Substation - Mocambique - Isolux / Multicor
Complete
commissioning of substation equipment comprising:
110V 105Ah Battery and charger
10 Panel 11kV Switchboard (Merlin Gerin - Sepam Relays -
PM500 Meters)
SE5 - 66kV 21MVAR Capacitor bank instalation - Mocambique
Commissioning of above installation comprising:
66kV 21MVAR Capacitor Bank
66kV Circuit Breaker
66kV Motorised Isolators and Motorised Earthing Switches
Associated Protection and Control Panel

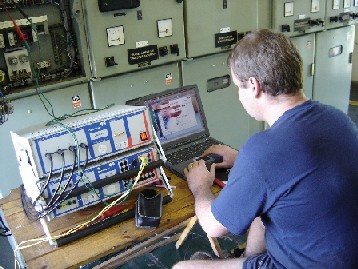

Routine Maintenance - National Ports Authority -
Richards Bay
| Maintenance of Vacuum, Minimum
Oil and Bulk Oil Circuit Breakers Routine Testing of Protection and Control Systems |
|
Routine Maintenance - South African Port Operations - Durban
|
Routine testing of Protection and Control Systems 54 x 11kV switchgear panels
|
|
